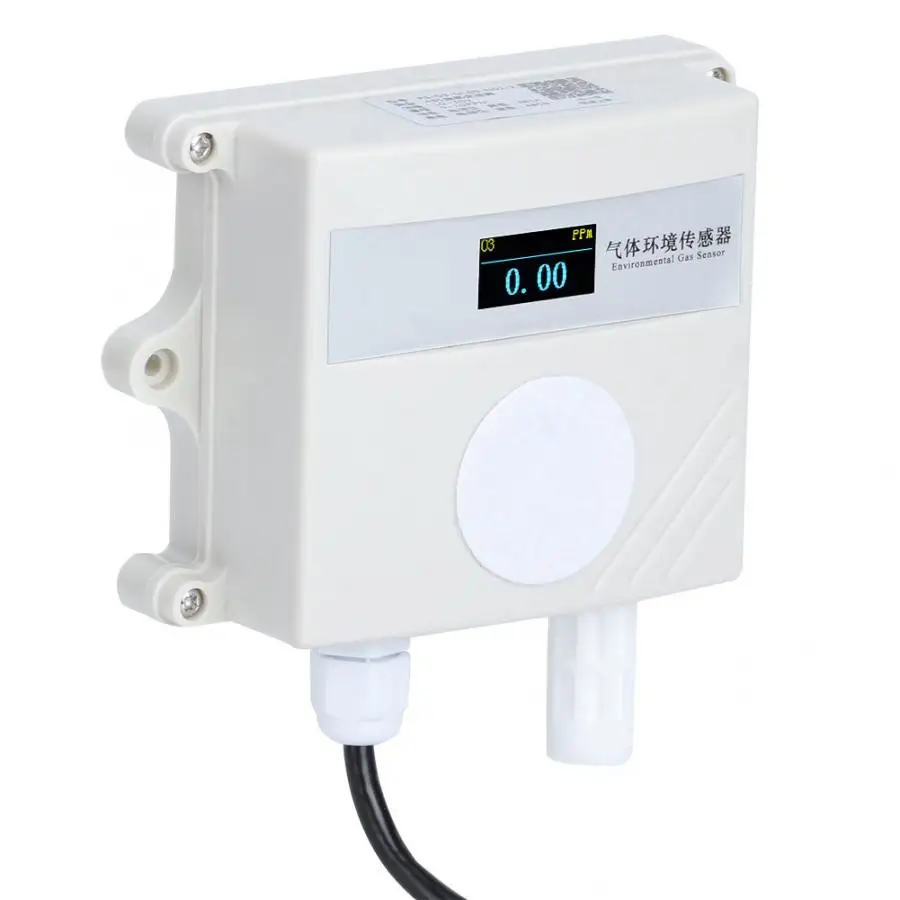

HomeSmall Air Conditioning Appliances  Rs-O3-N01-Oled-10P (Type 485) Ozone transmitter for aquaculture gas detection device with Dc10-30V display for the food industry

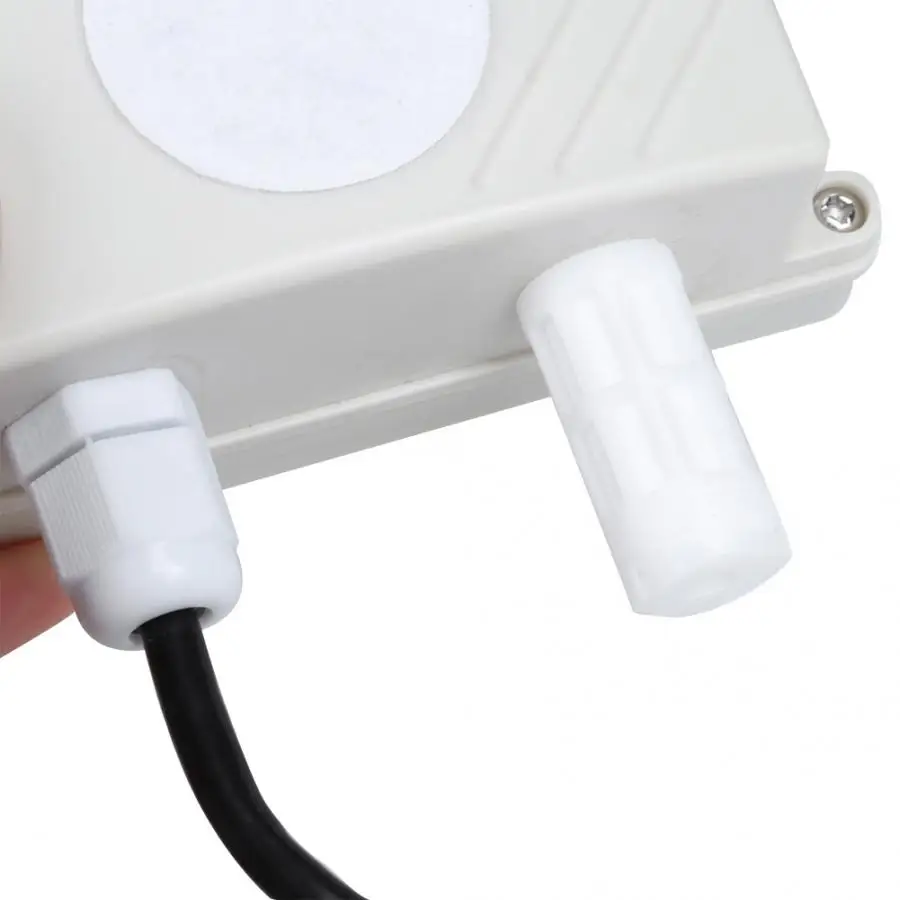

Rs-O3-N01-Oled-10P (Type 485) Ozone transmitter for aquaculture gas detection device with Dc10-30V display for the food industry

Original price
$ 296.91

Sku: 2205

Product Description



Feature:

1. Adopt high-sensitivity gas detection probe, with stable signal, high accuracy and reliable use.

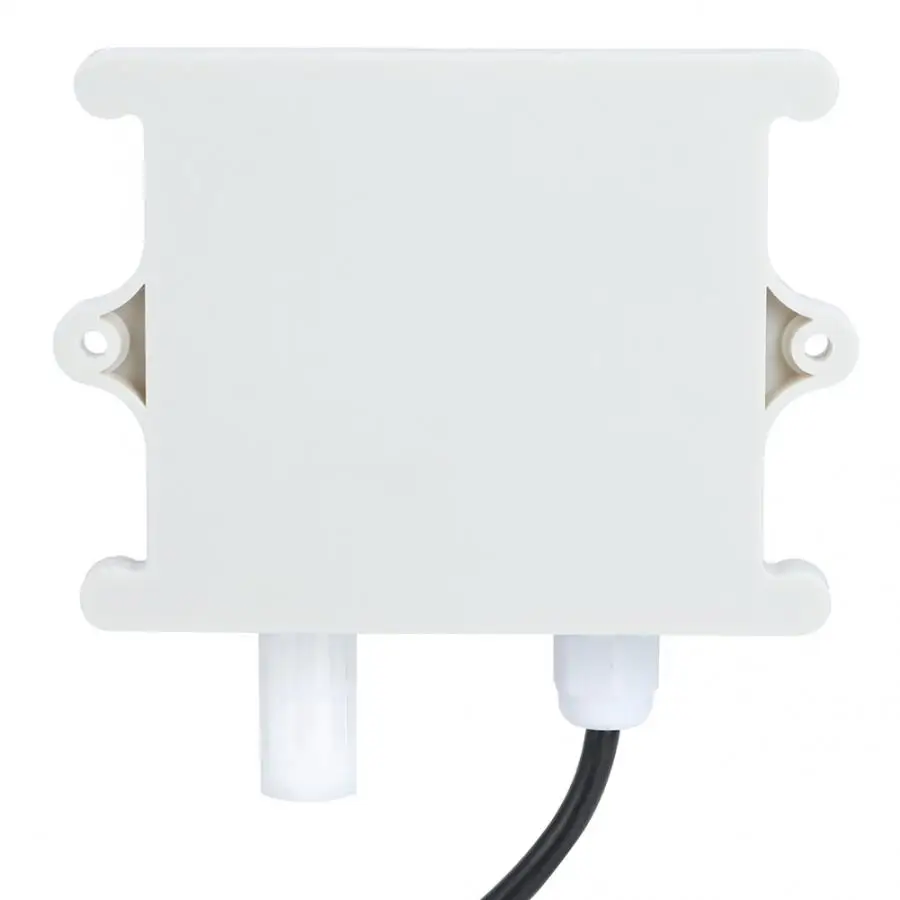

2. The product adopts wall-mounted installation, easy installation, high protection level, and good waterproof.
3. It has the characteristics of wide measuring range, good linearity, easy installation and long transmission distance.
4. The shell is made of high-quality PVC material, which is not easy to damage, durable, and has a long service life.
5. The transmitter can be widely used in food industry, livestock and poultry farming, agricultural greenhouses, aquaculture, pharmaceuticals, medicine care and other industries.


Specification:

Condition: 100% Brand New
Item Type: Ozone Transmitter
Material: PVC
Power Supply: 10-30V DC
Average Power Consumption: 0.1W
Output Signal: 485 (ModBus-RTU)
Temperature Measurement Range: -40 ℃ -80 ℃
Temperature Accuracy: ± 0.5 ℃
Humidity Measurement Range: 0-100% RH
Humidity Accuracy: ± 3% RH
Ozone Measurement Range: 0-10.00ppm, 0-100ppm
Working Temperature: -10 ℃ -55 ℃
Working Humidity: 15% RH-90% RH (No Condensation)
Working Pressure: 91-111Kpa
Data Update Time: 1s
Repeatability: ≤2% Output Value
Stability (Month): ≤7% Signal Value / Year
Response Time: ≤35S
Warm-Up Time: ≥ 5 Minutes
Resolution: Range: 0-10ppm: 0.01ppm, Range: 0-100ppm: 0.1ppm
Accuracy: ± 6% FS
Zeroing Drift: Range: 0-10ppm: ≤ ± 1ppm Range: 0-100ppm: ≤ ± 5ppm
Note: All the above specifications are measured under the environment conditions: temperature 20 ℃, relative humidity 50% RH, 1 atmospheric pressure, and the gas concentration to be measured does not exceed the sensor range.
Weight: Approx. 190g / 6.7oz

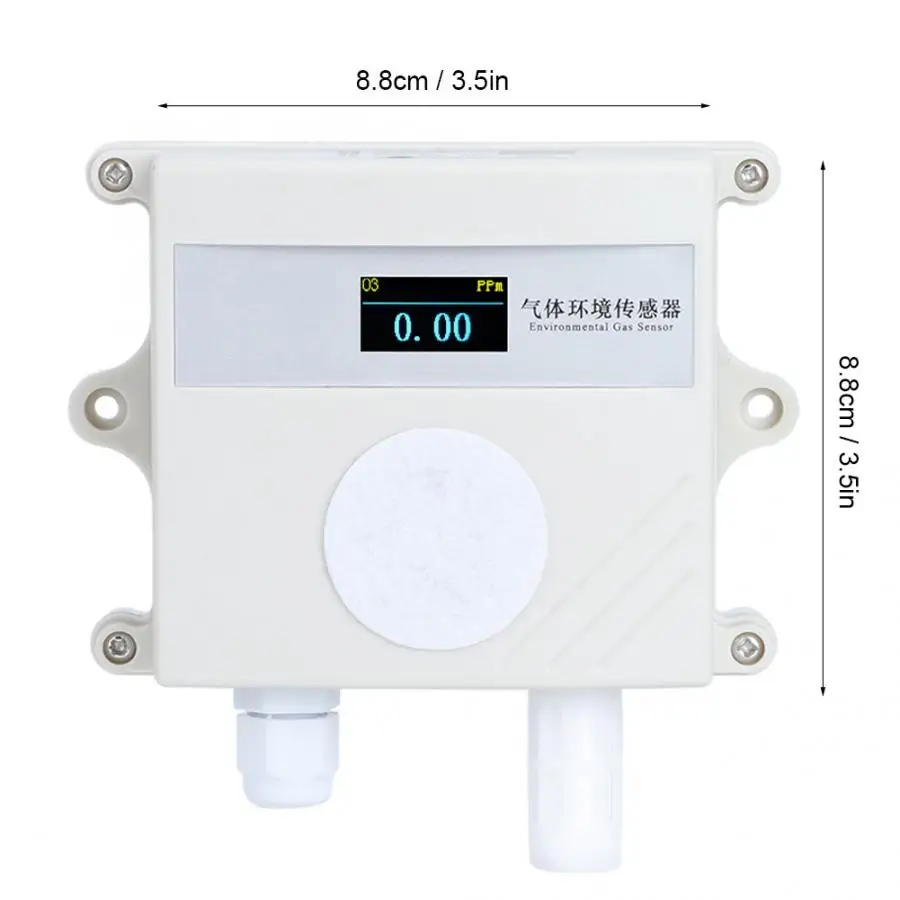

Panel Size: Approx. 8.8x8.8cm / 3.5x3.5in

Interface Description:
The wide voltage power input can be 10 ~ 30V. When connecting the 485 signal line, please note that the two lines A \ B cannot be reversed, and the addresses of multiple devices on the bus must not conflict.

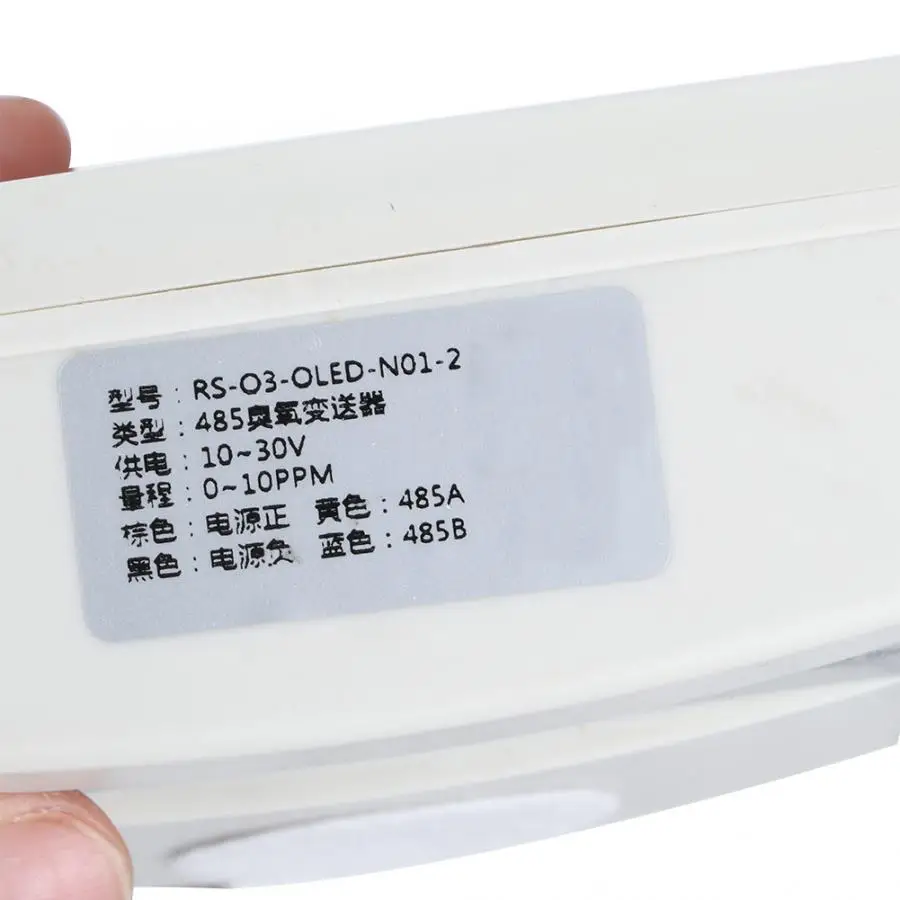

Thread Color Explanation
Power Supply Brown Power Positive (10 - 30V DC)
Black Power Negative
Communication Yellow 485-A
Blue 485-B

Common Problems and Solutions
Device cannot connect to PLC or computer
Possible reason:
1. The computer has multiple COM ports, and the selected port is incorrect.
2. The device address is wrong, or there are devices with duplicate addresses (the factory default is all 1).
3. Baud rate, check mode, data bit, stop bit error.
4. The host''s polling interval and waiting time for answering are too short, and both need to be set above 200ms.
5. The 485 bus is disconnected, or the A and B lines are reversed.
6. If there are too many devices or the wiring is too long, power should be supplied nearby, add a 485 enhancer, and add 120Ω terminal resistance.
7. The USB to 485 driver is not installed or damaged.
8. The equipment is damaged.


Package List:

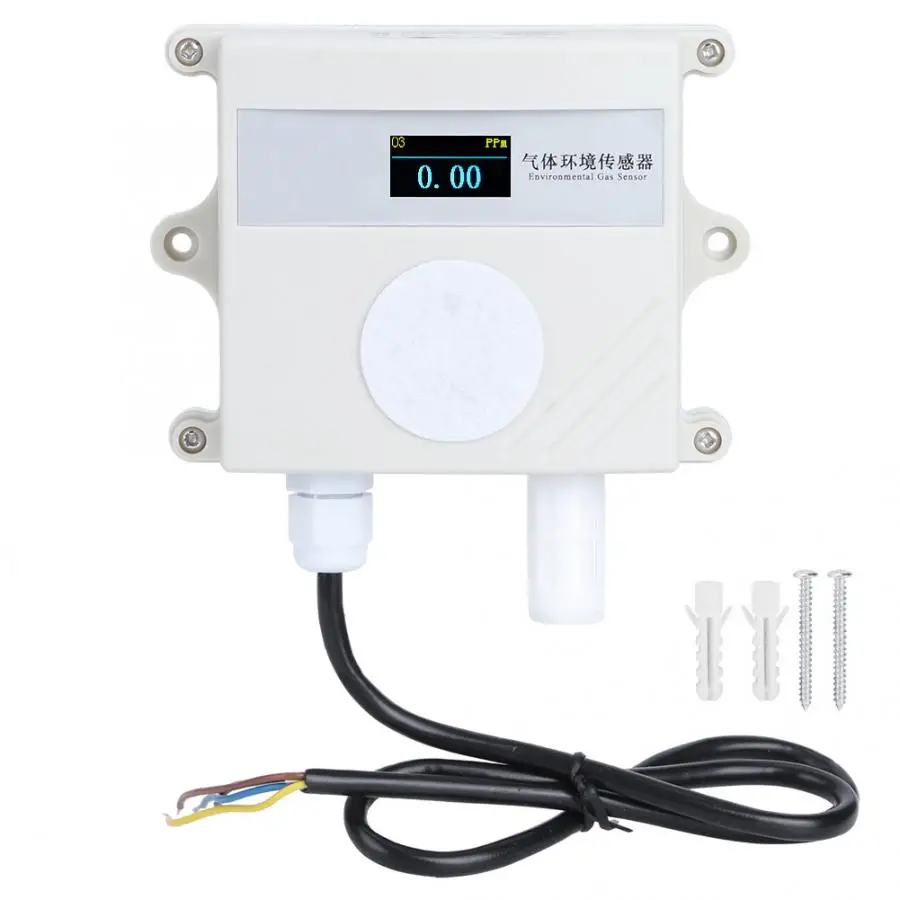

1 x Transmitter1 x Bag of Accessories (2 x Screws, 2 x Screw Nuts)
